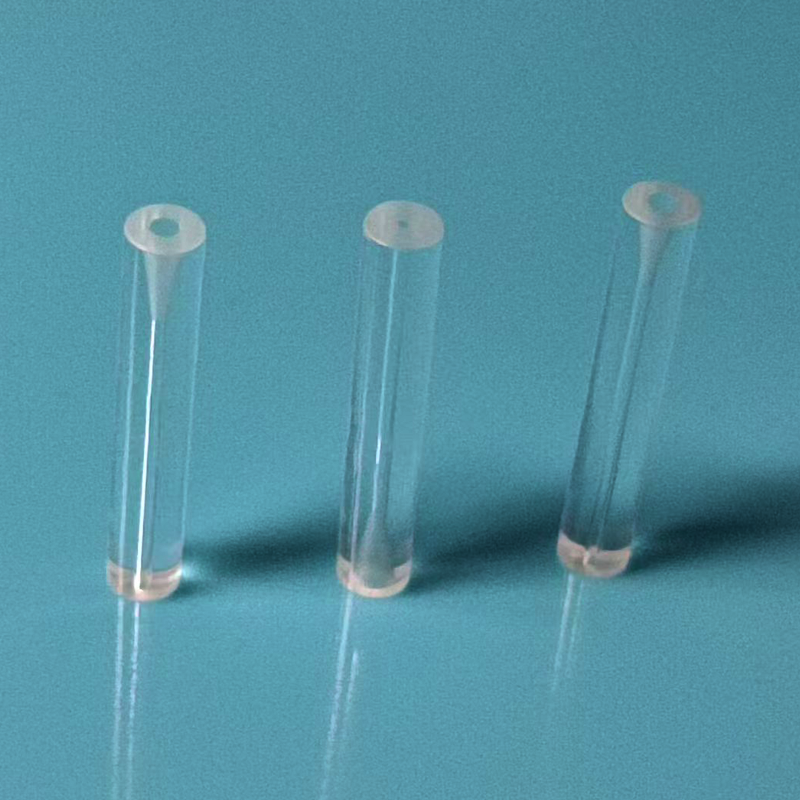

2x0.25x12mm Flared End Quartz Glass Tube For Optical Fiber Protection
| محل منبع | چین |
|---|---|
| شماره مدل | QT-FT-2x0.25x12 |
جزئیات محصول
| مواد | سیلیس ذوب شده با خلوص بالا (SiO2 > 99.99%) | قطر بیرونی | 2 میلی متر |
|---|---|---|---|
| ضخامت دیوار | 0.25 میلی متر | طول | 12 میلی متر |
| حداکثر دمای کار | 1100 درجه سانتی گراد | طراحی لوله | دهان زنگی گشاد شده (یک سر بزرگ شده) |
| دیوار داخلی | صاف، سوراخ دقیق، انتهای بدون سوراخ | مقاومت شیمیایی | HF، اسید قوی و قلیایی، حلال های آلی |
| انتقال | محدوده قابل مشاهده UV | خلوص | بدون بارش یون فلزی |
| برنامه | آستین اتصال فیبر، محافظ اتصال فیوژن، مدیریت فیبر چند هسته ای | ||
| برجسته کردن | flared end quartz glass tube,2x0.25x12mm quartz glass tube,Optical fiber protection quartz glass tube |
||
توضیحات محصول
Product Overview
The Quartz Flared Fiber Protection Tube (OD2mm x Wall 0.25mm x Length 12mm) is a precision-engineered micro component designed for bare fiber protection in optical communication devices. Manufactured from high-purity fused silica (SiO2 > 99.99%), it features a unique bell-mouth flared design that combines smooth fiber insertion with secure locking — protecting delicate bare fibers from mechanical damage, thermal stress, and environmental contamination.

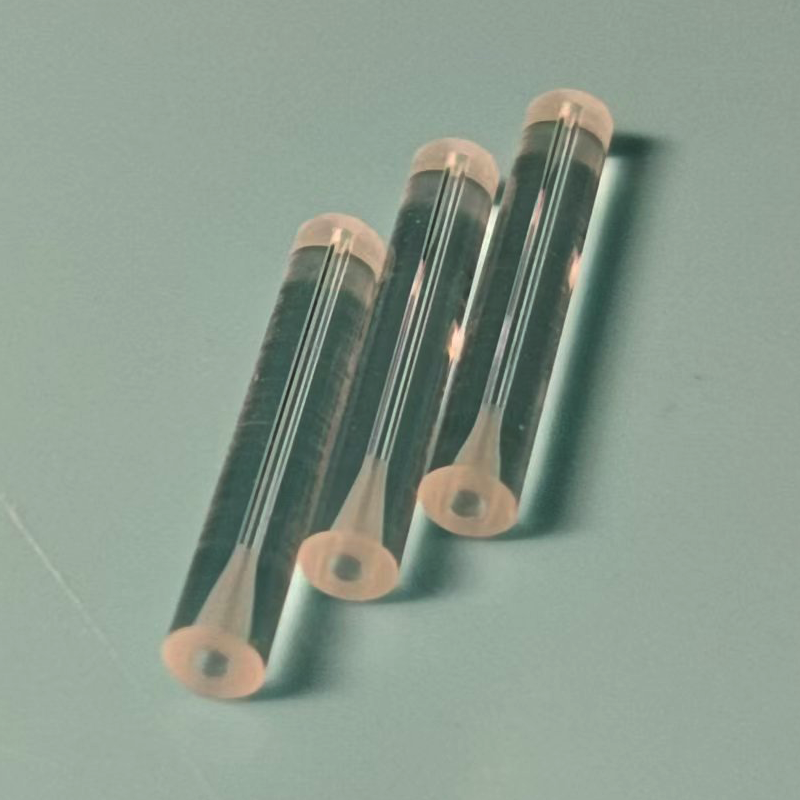

Core Design: Flared Bell-Mouth Structure
| Feature | Benefit |
|---|---|
| Flared Inlet (Large End) | Guides fiber threading smoothly, eliminating insertion resistance and preventing coating abrasion |
| Narrow Locking End (Small End) | Secures fiber in position, preventing pull-out and bending-induced core fracture |
| Burr-Free Precision Ends | Eliminates risk of fiber coating cut from sharp tube edges |
Key Features
- 1100°C High Temperature Resistance: Replaces conventional heat-shrinkable sleeves under extreme thermal conditions, ideal for industrial base stations and power substations
- Strong Acid & Alkali Resistance: Outstanding chemical durability against corrosive environments, ensuring long-term protection in harsh conditions
- High Purity Without Metal Precipitation: SiO2 > 99.99% with zero ion leaching, preserving signal integrity in precision optical paths
- UV Transmittance: Excellent optical clarity for UV-curable adhesive curing and visual fiber inspection
- Precision Bore & Smooth Inner Wall: Tight diameter tolerance with low-friction inner surface for consistent fiber positioning
Applications
| Application | Description |
|---|---|
| Fiber Connector & Pigtail Sleeves | Pre-installed inside FC/SC/LC connectors to protect fibers against pull stress and bending breakage during plugging/unplugging; ideal for optical modules and transceivers |
| Fusion Splice Joint Protection | Sealed tube encapsulates fusion splices to isolate damage from high heat, grease and moisture; widely used in high-temperature industrial base stations and power substations |
| Multi-Core Bundled Fiber Management | Flared opening gathers multiple bare fibers for neat cable routing; applied in optical splitters and fiber distribution boxes |
Competitive Advantages
vs. Heat-Shrinkable Sleeves: Withstands 1100°C vs ~200°C limit; transparent quartz enables visual inspection without sleeve removal; zero outgassing in vacuum or high-temperature environments
vs. Ceramic Ferrules: Lighter weight with comparable hardness; UV-transparent for adhesive curing; precision bore with smoother inner wall finish; more cost-effective for high-volume deployment
vs. Plastic Protection Tubes: Superior thermal stability with no softening or deformation; excellent organic solvent resistance; long-term dimensional stability without yellowing or embrittlement
Specifications
| Parameter | Value |
|---|---|
| Material | High Purity Fused Silica (SiO2 > 99.99%) |
| Outer Diameter | 2mm |
| Wall Thickness | 0.25mm |
| Length | 12mm |
| Max Operating Temperature | 1100°C |
| Design Type | Flared Bell-Mouth (One End Enlarged) |
| Chemical Resistance | HF, Strong Acid & Alkali, Organic Solvents |
| Inner Wall | Smooth, Precision Bore, Burr-Free Ends |
| Purity | No Metal Ion Precipitation |
